Gstar-II Series 500*750mm Indoor Rental LED Display Fixed Installation P1.5 P1.953mm Various Shapes
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | GCL |
| Сертификация: | EMC/CE/ROHS/CCC/FCC/BIS |
| Номер модели: | Gstar-II P1.56.P1.953/P2.5 |
Оплата и доставка Условия:
| Количество мин заказа: | Минутовый срок: 20 |
|---|---|
| Цена: | Price to be discussed |
| Упаковывая детали: | Размер одной упаковки: 60X60X30 см |
| Время доставки: | 15-20 дней |
| Условия оплаты: | L/C,D/A,D/P,T/T |
| Поставка способности: | 5000 квадратных метров/квадратных метры в месяц |
|
Подробная информация |
|||
| Фирменное наименование: | GCL | Наименование продукта: | Серия Gstar-II |
|---|---|---|---|
| Использование: | Крытый прокат | Размер панели: | 500х750х78 мм/ 500х1000х78 мм |
| Размер модуля: | 250*250 мм | Угол обзора: | H140°,V140° |
| Сертификация: | EMC/CE/ROHS/CCC/FCC/BIS | Среднее потребление энергии: | 150-180w |
| Обновить: | 3840-7680HZ | Пакет:: | Джоб. |
| Материал: | Алюминий литой | Масса панели: | 14 кг |
| Рейтинг ИС: | IP34 | ||
| Выделить: | 500*750mm Indoor Rental LED Display,Fixed Installation Indoor Rental LED Display,P1.5 Indoor Rental LED Display |
||
Характер продукции

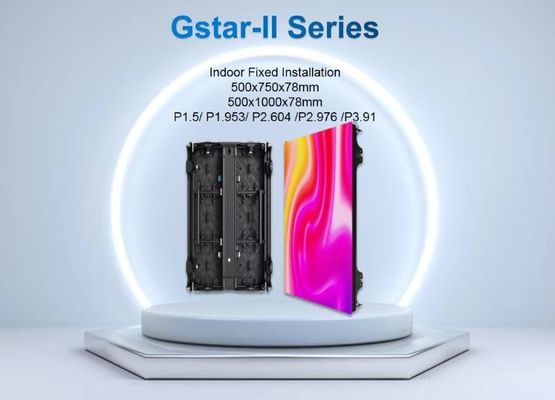

GCL LED Video Walls New Gstar II indoorP1.95 P2.6 P2.97 P3.91 P4.8 High-Definition Display Screen
Model Number:p1.56 P1.95 P2.6, P2.97, P3.91,

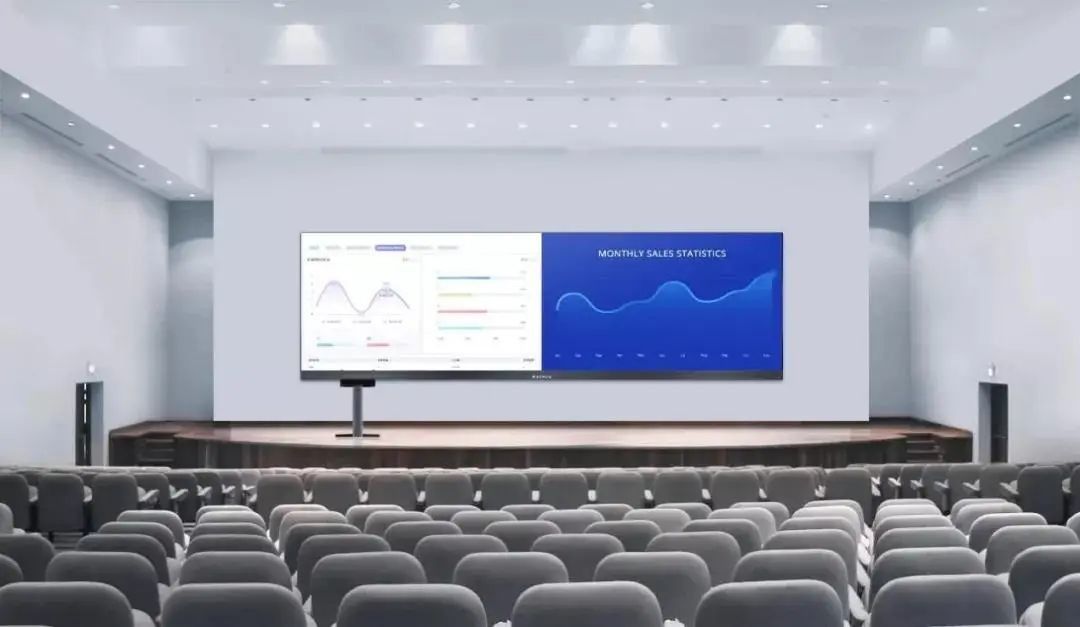

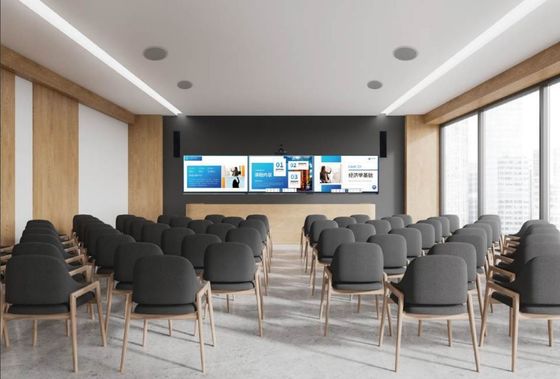

Gstar II products are indoor small pitch display screens installed on the wall, with P1.56 and P1.953mm as the main spacing. The first product box size is 750 * 500mm, which is convenient and flexible for building indoor large display background walls with heights of 1500mm, 2250mm, and 3000mm. Of course, it can also be used in conjunction with 1000 * 500mm products, which provides more options for building solutions! Convenient for building 2K and 4K display walls and conference screens; The product is easy to install and has a service life of over 100000 hours. It is the preferred LED display product for large conference rooms, studios, command centers, and technology exhibition halls;
Product specifications:
| Product | P1.5 | P2.604 | ||
| Pitch | 1.5625mm | 2.604mm | ||
| Density(pixels/㎡) | 409600 | 147456 | ||
| LED Type | SMD1212 | SMD2020 | ||
| Brightness | 800nits | 800nits | ||
| Scan Method | 1/32 | 1/24 | ||

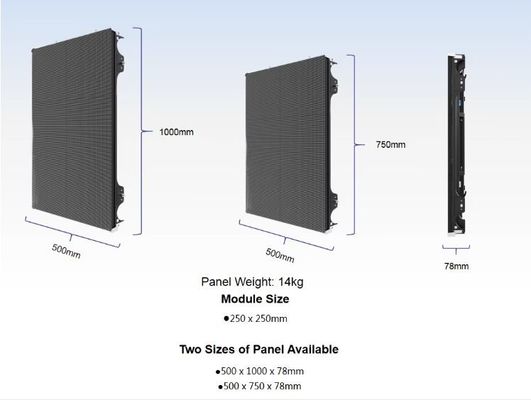

| Panel Size | 500x750x78mm / 500x1000x78mm | |||
| Module Size | 250x250mm | |||
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 14kg | |||
| Maintenance | Module Front Service & Rear Service | |||
| Max Power Consumption | 450W/㎡ | 550W/㎡ | ||
| Average Power Consumption | 150W/㎡ | 180W/㎡ | ||
| Refresh Rate | 3840Hz | |||
| Grey Scale | 13-16bit | |||
| ertifications | CE/ROHD/EMC/TUV/UL/CCC/FCC/ISO | |||
